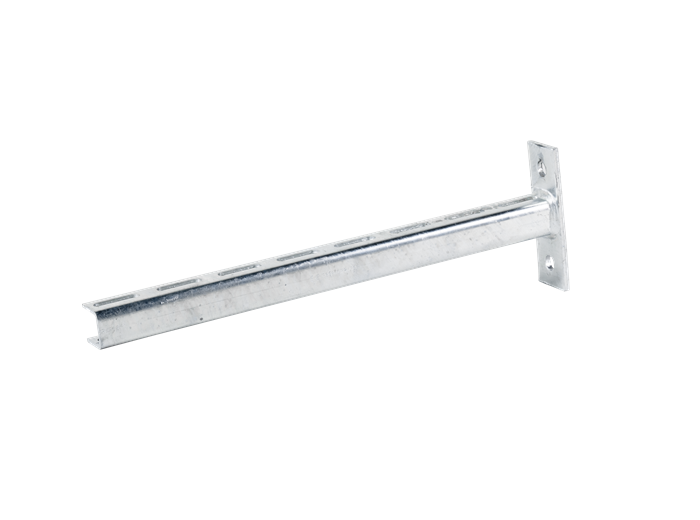

S-10

Consoles

For suspension of channels

Variants

This product has variants, please see the catalogue below to see all.

Catalogue Make contact

Material

HDG (Hot dip galvanized) - EN 10025-2 S235JR, Hot dip galvanized according to SS-EN ISO 1461

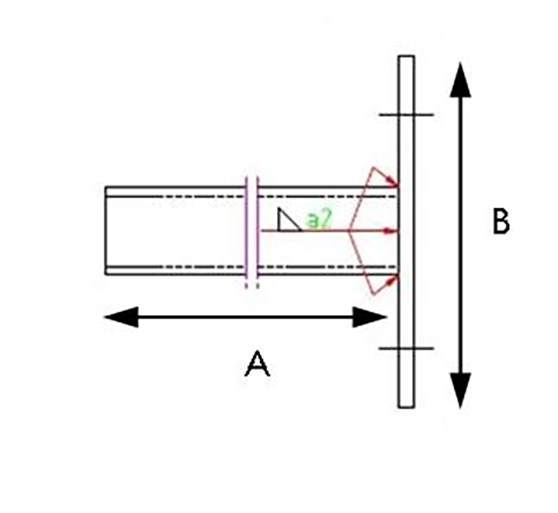

Design

Variants

Best nr	RSK nr	A mm	B mm	Hole Ø - C/C mm	Load according to SS-EN 12236 kN	Load according to EK kN	Performance	Corrosivity class	Quantity/fp	Fire class	Product sheet
0067	402 44 42	150	120	13 - 80	1,27	1,22	FZV	C4	1		SHOW Product sheet
0068	402 44 43	200	120	13 - 80	1,23	0,92	FZV	C4	1		SHOW Product sheet
0069	402 44 45	250	120	13 - 80	1,18	0,74	FZV	C4	1		SHOW Product sheet
0070	402 44 46	300	120	13 - 80	1,13	0,61	FZV	C4	1		SHOW Product sheet
0071	402 44 47	400	120	13 - 80	0,93	0,46	FZV	C4	1		SHOW Product sheet
1075	402 44 21	500	120	13 - 80	0,74		FZV	C4	1		SHOW Product sheet
1076	402 44 41	600	120	13 - 80			FZV	C4	1		SHOW Product sheet
