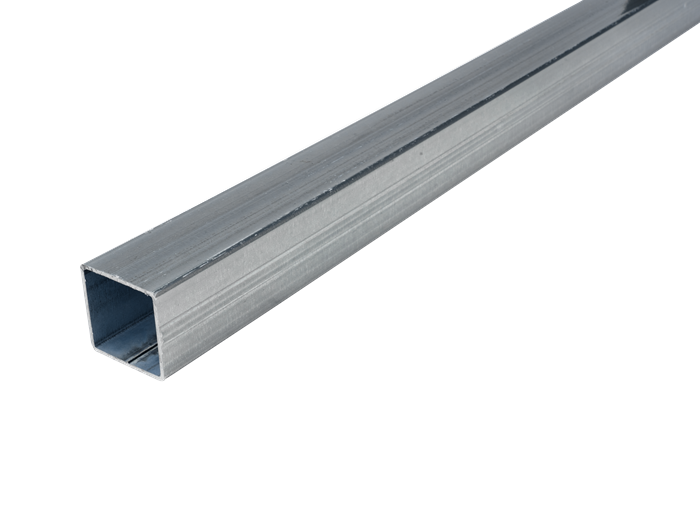

Stand pipe
Stand System
With stand pipe as a base, you can use all the other parts to build a stand. The system is easy to put together and fixed using self-tapping screw. Add plastic endcaps. We also have rubber tiles that absorbs vibrations for under the stand foot.
Variants
This product has variants, please see the catalogue below to see all.
Material
GS (Galvanized sendzimir)
HDG (Hot Dip Galvanized) - EN 10025-2 S235JR; Varmförzinkad enligt SS-EN ISO 1461
A4 (Stainless acid-resistant steel) - EN 10088-2 EN 1.4404

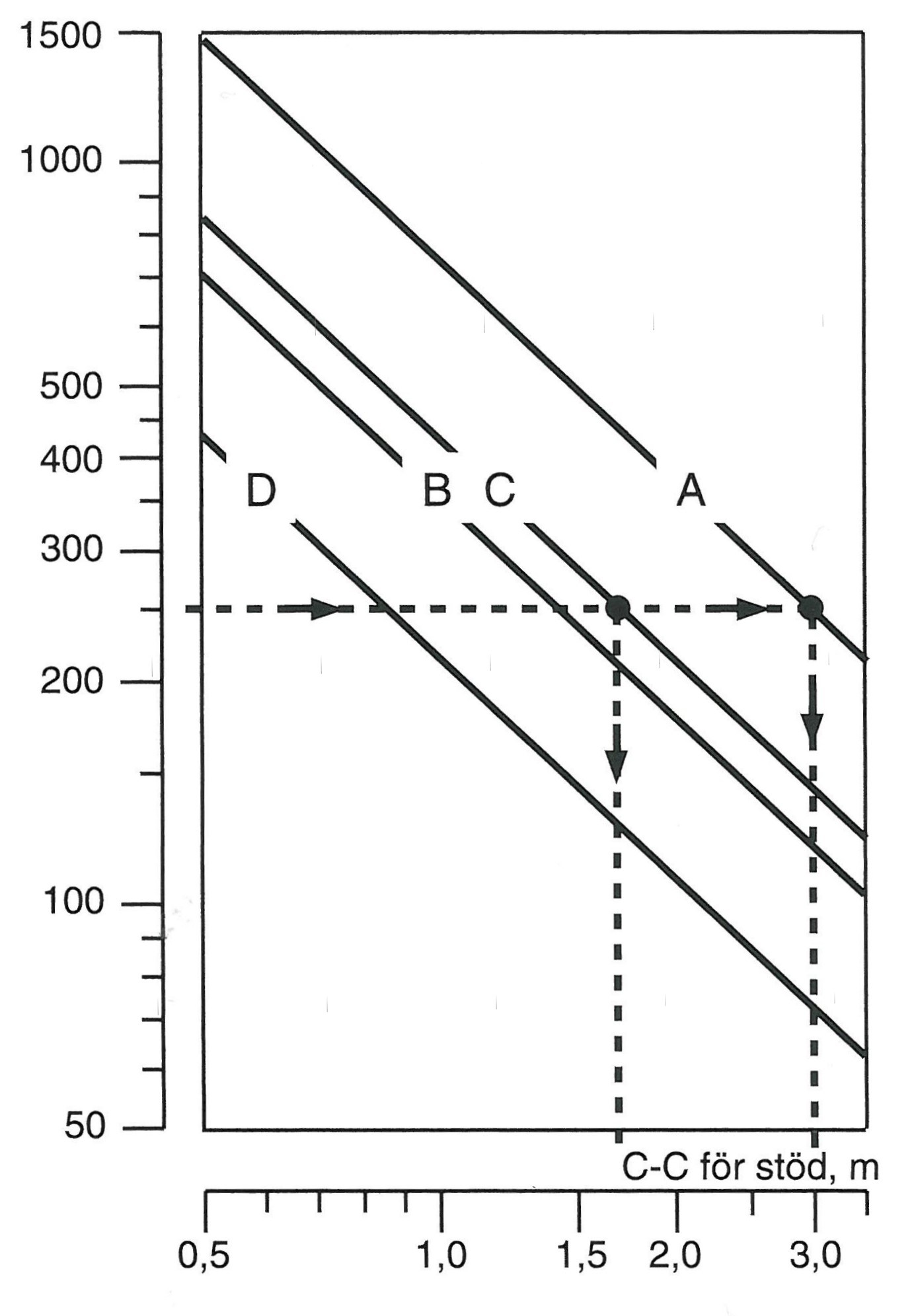

Load diagram load in kg
Description of load diagrams
The load diagram shows the maximum allowable load with regard to bending sensation and does not take deflection into account. The diagram indicates the maximum permissible load for different distances between support legs, without limit load according to steel construction standard, StBK-N1 statistical load is exceeded. The load diagram applies to each horizontal pipe with associated supports provided that no lateral forces occur.
A= Spread, evenly distributed static load tube 45x45x2
B= Centrally applied static point load pipe 45x45x2
C= Widespread, evenly distributed static load tube 35x35x1.5
D= Centrally applied static point load pipe 35x35x1.5
Example; Load 250 kg evenly distributed
Stand pipe 45x45 gives a maximum c/c between support legs of 3.0 m
Stand tube 35x35 gives a maximum c/c between support legs of 1.7 m
| Best nr | RSK nr | Dim mm | Length mm | Performance | Corrosivity class | Quantity/fp | Fire class | Product sheet |
| 0030 | 387 35 97 | 35x35x1,5 | 3000 | FZS | C1 | 1-100 | show Product sheet | |
| 0790 | 387 35 98 | 35x35x1,5 | 2000 | FZS | C1 | 1-100 | show Product sheet | |
| 0436 | 387 36 00 | 45x45x2 | 3000 | FZS | C1 | 1-100 | show Product sheet | |
| 5200 | 387 35 79 | 35x35x1,5 | 3000 | FZV | C4 | 1-100 | show Product sheet | |
| 5209 | 387 35 81 | 35x35x1,5 | 2000 | FZV | C4 | 1-100 | show Product sheet | |
| 4300 | 387 36 49 | 45x45x2 | 3000 | FZV | C4 | 1-100 | show Product sheet | |
| 0269 | 387 35 99 | 35x35x1,5 | 3000 | A4 | C5 | 1-100 | show Product sheet |
