Suspension Cradle
Suspension rings and suspension cradle
Our suspension rings is CE-branded according to EN 1090. Our part numbers as well as our CPR No. (Identity no) is branded on each ring. Rings and cradles are made in dimensions that are prescribed by national Swedish guidelines and also recognized by our industry organization Swedish ventilation.
Variants
This product has variants, please see the catalogue below to see all.
Material
PGH (Pre-Galvanized hot) - EN 10327 DX51D+Z275
HDG (Hot dip galvanized)) - EN 10025-2 S235JR; Varmförzinkad enligt SS-EN ISO 1461
A4 (Stainless acid-resistant steel) - EN 10088-2 EN 1.4404
ZM310 (Magnelis) - DX51D ZM310 MAC Magnelis
AlZn (Aluzink) - DX51D AZ185 NAC

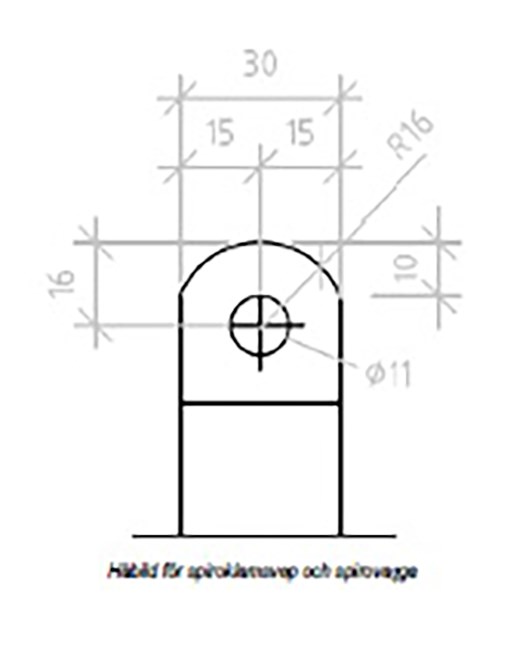

Hålbild
Varianter
| Best nr | RSK nr | Dim mm | Dim mat mm | Utförande | Korrosivitetsklass | Antal/fp | Brandklass | Produktblad |
| 0574 | 387 35 44 | 102 | 1,25x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0507 | 387 35 45 | 127 | 1,25,30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0527 | 387 35 46 | 162 | 1,5x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 1046 | 387 35 47 | 202 | 1,5x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0047 | 387 35 48 | 252 | 1,5x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0048 | 387 35 49 | 318 | 1,5x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0048 | 387 35 50 | 403 | 2x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0050 | 387 35 51 | 503 | 2x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0051 | 387 35 52 | 633 | 2x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0052 | 387 35 53 | 803 | 3x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0053 | 387 35 54 | 1003 | 3x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 1053 | 387 35 55 | 1253 | 3x30 | FFZV | C3 | 5 | R60 | VISA PRODUKTBLAD |
| 5300 | 387 34 33 | 102 | 1,25x30 | ZM310 | C4 | 10 | R60 | |
| 5301 | 387 34 34 | 127 | 1,25,30 | ZM310 | C4 | 10 | R60 | |
| 5302 | 387 34 35 | 162 | 1,5x30 | ZM310 | C4 | 10 | R60 | |
| 5303 | 387 34 36 | 202 | 1,5x30 | ZM310 | C4 | 10 | R60 | |
| 5304 | 387 34 37 | 252 | 1,5x30 | ZM310 | C4 | 10 | R60 | |
| 5305 | 387 34 38 | 318 | 1,5x30 | ZM310 | C4 | 10 | R60 | |
| 5306 | 387 34 39 | 403 | 2x30 | ZM310 | C4 | 10 | R60 | |
| 5307 | 387 34 40 | 503 | 2x30 | ZM310 | C4 | 10 | R60 | |
| 5308 | 387 34 41 | 633 | 2x30 | ZM310 | C4 | 10 | R60 | |
| 5309 | 387 34 42 | 803 | 3x30 | ZM310 | C4 | 10 | R60 | |
| 5310 | 387 34 43 | 1003 | 3x30 | ZM310 | C4 | 10 | R60 | |
| 5311 | 387 34 44 | 1253 | 3x30 | ZM310 | C4 | 5 | R60 | |
| 5044 | 387 35 10 | 127 | 1,5x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5045 | 387 35 11 | 162 | 1,5x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5046 | 387 35 12 | 202 | 1,5x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5047 | 387 35 13 | 252 | 1,5x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5048 | 387 35 14 | 318 | 1,5x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5049 | 387 35 15 | 403 | 2x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5050 | 387 35 16 | 503 | 2x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5051 | 387 35 17 | 633 | 2x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5052 | 387 35 18 | 803 | 2x30 | AlZn | C4 | 1-10 | VISA PRODUKTBLAD | |
| 5053 | 387 35 19 | 1003 | 2x30 | AlZn | C4 | 1-10 | VISA PRODUKTBLAD | |
| 5054 | 387 35 20 | 1253 | 2x30 | AlZn | C4 | 1-5 | VISA PRODUKTBLAD | |
| 5168 | 387 34 84 | 102 | 1,25x30 | FZV | C4 | 1-10 | R60 | |
| 5169 | 387 34 85 | 127 | 1,25,30 | FZV | C4 | 1-10 | R60 | |
| 5170 | 387 34 86 | 162 | 1,5x30 | FZV | C4 | 1-10 | R60 | |
| 5171 | 387 34 87 | 202 | 1,5x30 | FZV | C4 | 1-10 | R60 | |
| 5172 | 387 34 88 | 252 | 1,5x30 | FZV | C4 | 1-10 | R60 | |
| 5173 | 387 34 89 | 318 | 1,5x30 | FZV | C4 | 1-10 | R60 | |
| 5174 | 387 34 90 | 403 | 2x30 | FZV | C4 | 1-10 | R60 | |
| 5175 | 387 34 91 | 503 | 2x30 | FZV | C4 | 1-10 | R60 | |
| 5176 | 387 34 92 | 633 | 2x30 | FZV | C4 | 1-10 | R60 | |
| 5177 | 387 34 93 | 803 | 3x30 | FZV | C4 | 1-10 | R60 | |
| 5178 | 387 34 94 | 1003 | 3x30 | FZV | C4 | 1-10 | R60 | |
| 5179 | 387 34 95 | 1253 | 3x30 | FZV | C4 | 1-5 | R60 | |
| 0409 | 387 34 59 | 102 | 1,25x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0469 | 387 34 60 | 127 | 1,25,30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0506 | 387 34 61 | 162 | 1,5x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0425 | 387 34 62 | 202 | 1,5x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0426 | 387 34 63 | 252 | 1,5x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0427 | 387 34 64 | 318 | 1,5x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0428 | 387 34 65 | 403 | 2x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0429 | 387 34 66 | 503 | 2x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0430 | 387 34 67 | 633 | 2x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0431 | 387 34 68 | 803 | 3x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0432 | 387 34 69 | 1003 | 3x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0433 | 387 34 70 | 1253 | 3x30 | A4 | C5 | 1-5 | R60 | VISA PRODUKTBLAD |
