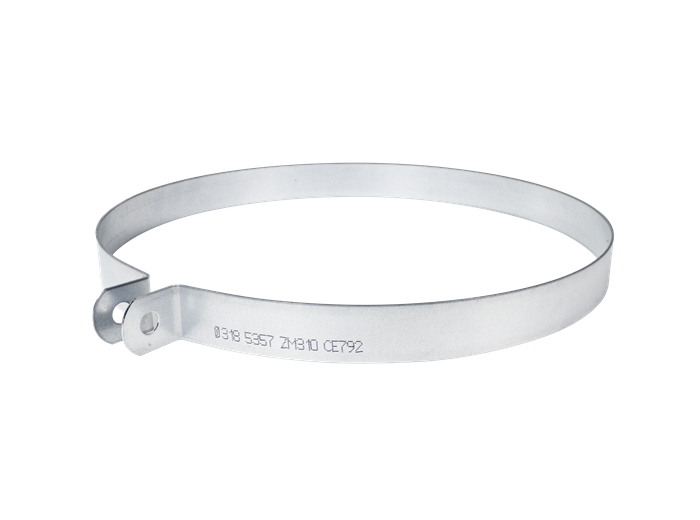

Suspension rings
Suspension rings and suspension cradle
Our suspension rings is CE-branded according to EN 1090. Our part numbers as well as our CPR No. (Identity no) is branded on each ring. Rings and cradles are made in dimensions that are prescribed by national Swedish guidelines and also recognized by our industry organization Swedish ventilation.
Variants
This product has variants, please see the catalogue below to see all.
Material
PGH (Pre-Galvanized hot) - EN 10327 DX51D+Z275
HDG (Hot Dip Galvanized) - EN 10025-2 S235JR; Varmförzinkad enligt SS-EN ISO 1461
A4 (Stainless acid-resistant steel) - EN 10088-2 EN 1.4404
ZM310 (Magnelis) - DX51D ZM310 MAC Magnelis
AlZn (Aluzink) - DX51D AZ185 NAC
Hålbild
Varianter
| Best nr | RSK nr | Dim mm | Dim mat mm | Utförande | Korrosivitetsklass | Antal/fp | Brandklass | Produktblad |
| 0054 | 387 35 56 | 64 | 1,25x30 | FFZV | C3 | 5 | R60 | VISA PRODUKTBLAD |
| 0055 | 387 35 57 | 81 | 1,25x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0056 | 387 35 58 | 102 | 1,25x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0057 | 387 35 59 | 127 | 1,25x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0058 | 387 35 60 | 162 | 1,5x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0059 | 387 35 61 | 202 | 1,5x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0060 | 387 35 62 | 252 | 1,5x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0061 | 387 35 63 | 318 | 1,5x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0062 | 387 35 64 | 403 | 2x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0063 | 387 35 65 | 503 | 2x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0064 | 387 35 66 | 633 | 2x30 | FFZV | C3 | 10 | R60 | VISA PRODUKTBLAD |
| 0065 | 387 35 67 | 803 | 3x30 | FFZV | C3 | 5 | R60 | VISA PRODUKTBLAD |
| 0066 | 387 35 68 | 1003 | 3x30 | FFZV | C3 | 5 | R60 | VISA PRODUKTBLAD |
| 1066 | 387 35 69 | 1253 | 3x30 | FFZV | C3 | 5 | R60 | VISA PRODUKTBLAD |
| 5350 | 387 34 45 | 64 | 1,25x30 | ZM310 | C4 | 5 | R60 | |
| 5351 | 387 34 46 | 81 | 1,25x30 | ZM310 | C4 | 10 | R60 | |
| 5352 | 387 34 47 | 102 | 1,25x30 | ZM310 | C4 | 10 | R60 | |
| 5353 | 387 34 48 | 127 | 1,25x30 | ZM310 | C4 | 10 | R60 | |
| 5354 | 387 34 49 | 162 | 1,5x30 | ZM310 | C4 | 10 | R60 | |
| 5355 | 387 34 50 | 202 | 1,5x30 | ZM310 | C4 | 10 | R60 | |
| 5356 | 387 34 51 | 252 | 1,5x30 | ZM310 | C4 | 10 | R60 | |
| 5357 | 387 34 52 | 318 | 1,5x30 | ZM310 | C4 | 10 | R60 | |
| 5358 | 387 34 53 | 403 | 2x30 | ZM310 | C4 | 10 | R60 | |
| 5359 | 387 34 54 | 503 | 2x30 | ZM310 | C4 | 10 | R60 | |
| 5360 | 387 34 55 | 633 | 2x30 | ZM310 | C4 | 10 | R60 | |
| 5361 | 387 34 56 | 803 | 3x30 | ZM310 | C4 | 5 | R60 | |
| 5362 | 387 34 57 | 1003 | 3x30 | ZM310 | C4 | 5 | R60 | |
| 5363 | 387 34 58 | 1253 | 3x30 | ZM310 | C4 | 5 | R60 | |
| 5068 | 64 | 1x30 | AlZn | C4 | 1-5 | VISA PRODUKTBLAD | ||
| 5055 | 387 35 21 | 81 | 1x30 | AlZn | C4 | 1-10 | VISA PRODUKTBLAD | |
| 5056 | 387 35 22 | 102 | 1,5x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5057 | 387 35 23 | 127 | 1,5x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5058 | 387 35 24 | 162 | 1,5x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5059 | 387 35 25 | 202 | 1,5x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5060 | 387 35 26 | 252 | 1,5x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5061 | 387 35 27 | 318 | 1,5x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5062 | 387 35 28 | 403 | 2x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5063 | 387 35 29 | 503 | 2x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5064 | 387 35 30 | 633 | 2x30 | AlZn | C4 | 1-10 | R60 | VISA PRODUKTBLAD |
| 5065 | 387 35 31 | 803 | 2x30 | AlZn | C4 | 1-5 | VISA PRODUKTBLAD | |
| 5066 | 387 35 32 | 1003 | 2x30 | AlZn | C4 | 1-5 | VISA PRODUKTBLAD | |
| 5067 | 387 35 33 | 1253 | 2x30 | AlZn | C4 | 1-5 | VISA PRODUKTBLAD | |
| 5154 | 387 34 96 | 64 | 1,25x30 | FZV | C4 | 1-5 | R60 | |
| 5155 | 387 34 97 | 81 | 1,25x30 | FZV | C4 | 1-10 | R60 | |
| 5156 | 387 34 98 | 102 | 1,25x30 | FZV | C4 | 1-10 | R60 | |
| 5157 | 387 34 99 | 127 | 1,25x30 | FZV | C4 | 1-10 | R60 | |
| 5158 | 387 35 00 | 162 | 1,5x30 | FZV | C4 | 1-10 | R60 | |
| 5159 | 387 35 01 | 202 | 1,5x30 | FZV | C4 | 1-10 | R60 | |
| 5160 | 387 35 02 | 252 | 1,5x30 | FZV | C4 | 1-10 | R60 | |
| 5161 | 387 35 03 | 318 | 1,5x30 | FZV | C4 | 1-10 | R60 | |
| 5162 | 387 35 04 | 403 | 2x30 | FZV | C4 | 1-10 | R60 | |
| 5163 | 387 35 05 | 503 | 2x30 | FZV | C4 | 1-10 | R60 | |
| 5164 | 387 35 06 | 633 | 2x30 | FZV | C4 | 1-10 | R60 | |
| 5165 | 387 35 07 | 803 | 3x30 | FZV | C4 | 1-5 | R60 | |
| 5166 | 387 35 08 | 1003 | 3x30 | FZV | C4 | 1-5 | R60 | |
| 5167 | 387 35 09 | 1253 | 3x30 | FZV | C4 | 1-5 | R60 | |
| 0414 | 387 34 71 | 64 | 1,25x30 | A4 | C5 | 1-5 | R60 | VISA PRODUKTBLAD |
| 0415 | 387 34 72 | 81 | 1,25x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0416 | 387 34 73 | 102 | 1,25x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0417 | 387 34 74 | 127 | 1,25x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0418 | 387 34 75 | 162 | 1,5x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0419 | 387 34 76 | 202 | 1,5x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0420 | 387 34 77 | 252 | 1,5x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0421 | 387 34 78 | 318 | 1,5x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0422 | 387 34 79 | 403 | 2x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0423 | 387 34 80 | 503 | 2x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0424 | 387 34 81 | 633 | 2x30 | A4 | C5 | 1-10 | R60 | VISA PRODUKTBLAD |
| 0470 | 387 34 82 | 803 | 3x30 | A4 | C5 | 1-5 | R60 | VISA PRODUKTBLAD |
| 0835 | 387 34 83 | 1003 | 3x30 | A4 | C5 | 1-5 | R60 | VISA PRODUKTBLAD |
